excel表格制作WIFI信号百分比图表的具体操作

编辑： 心蛊
巴兔手游盒子
GM盒子(高返利版)
GM手游福利平台,免费送首充,上线送VIP,免费领元宝和代金券。
立即下载   精品合集

  今天给大家讲的是excel表格制作WIFI信号百分比图表的具体操作，对此感兴趣的同学们就一起学习下吧!

  1、如下图1所示是原始数据，使用仿WIFI信号的图表通常原始数据为一个数据系列的数据为百分比类型，在图表中显示，可以得到一种类似进度条的效果。

  2、这种类型图表是通过圆环图的堆叠完成的，而且只在圆环大小的1/3的范围内分布，因此需要对原始数据进行处理，处理的方式首先如下图1所示，使用公式将原始数据乘以1/3，得到辅助列数据。

  3、然后再构造几组辅助列，如下图所示，高亮黄色的数据列是由原始数据修改后得到的数据，第1行为上一步骤中辅助列的数据，第2行为1/3-第一行的数据，第三行为2/3;粉红色列数据是间隔列，用于在有效数据列中间的分隔。

  4、如图1所示，选中这些数据，插入-其他图表-圆环图，得到图2所示图表，这时候选中绘图区-设计-切换行/列，得到图3所示图表。

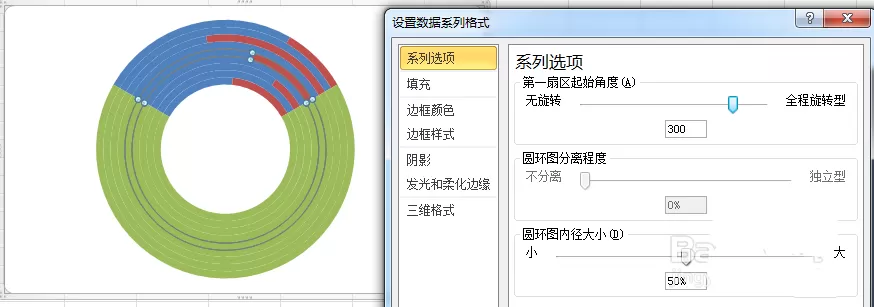

  5、然后调整有用部分的旋转角度，使之位于中心位置，如下图右侧所示设置旋转，可得到左侧的图。

  6、将间隔列(粉色数据)的数据选中，设置填充为“无填充”，选中数据列数据(高亮黄色)，将绿色部分选中，设置填充为“无填充”，得到下图1所示图表。

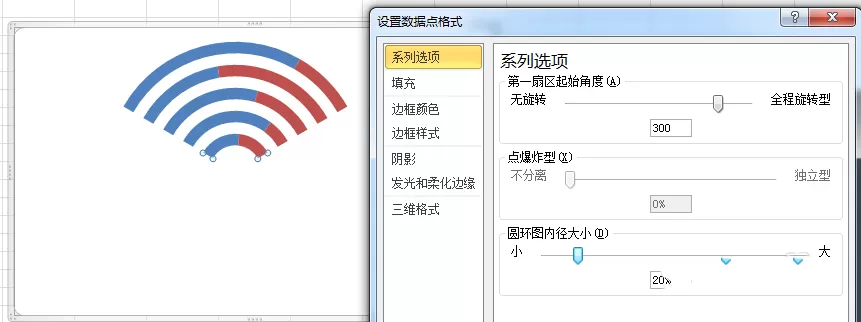

  7、调整圆环内径大小，如下图所示，设置为20%左右，然后插入形状“圆形”，最终得到下图2所示图表。

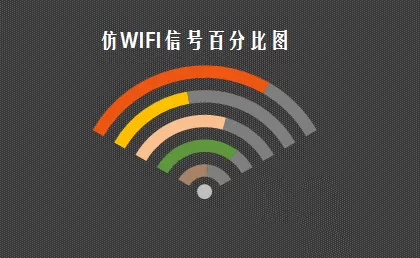

  8、美化步骤：将每个数据系列(蓝色部分)填充为不同颜色，将补充数据(红色部分)填充为浅灰色，图表区背景设置为背景色为褐灰色，前景色为深灰色的图案填充，添加标题后，最终得到成图，如下图所示。

  以上就是excel表格制作WIFI信号百分比图表的具体操作，希望对大家有所帮助。
