如何使用AutoCAD画法兰图纸？

编辑： 罪念
巴兔手游盒子
GM盒子(高返利版)
GM手游福利平台,免费送首充,上线送VIP,免费领元宝和代金券。
立即下载   精品合集

  今天小编给大家分享的是如何使用AutoCAD画法兰图纸?对这个感兴趣的小伙伴们就和小编一起学习下吧，以下就是具体的内容。

  1、因为列举的步骤比较详细 我就把几个步骤结合到一起讲了，希望朋友们仔细阅读哦，首先打开CAD软件，在里面找到直线工具，也可以直接按下L ，在CAD中L是直线的快捷键，

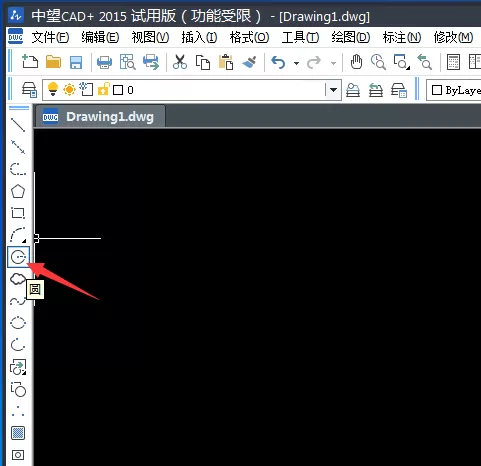

  2、选择好直线工具之后，在下面的工具栏里选择正交打开，然后在画布上绘制两条垂直相交的直线，用作画图的中心线使用，然后选择圆工具，也可以直接按下C进行绘制，以交点为圆心画圆，点击圆心之后在命令栏里输入要绘制的圆的半径值，这里我是以平焊10kg法兰DN200的为例画的

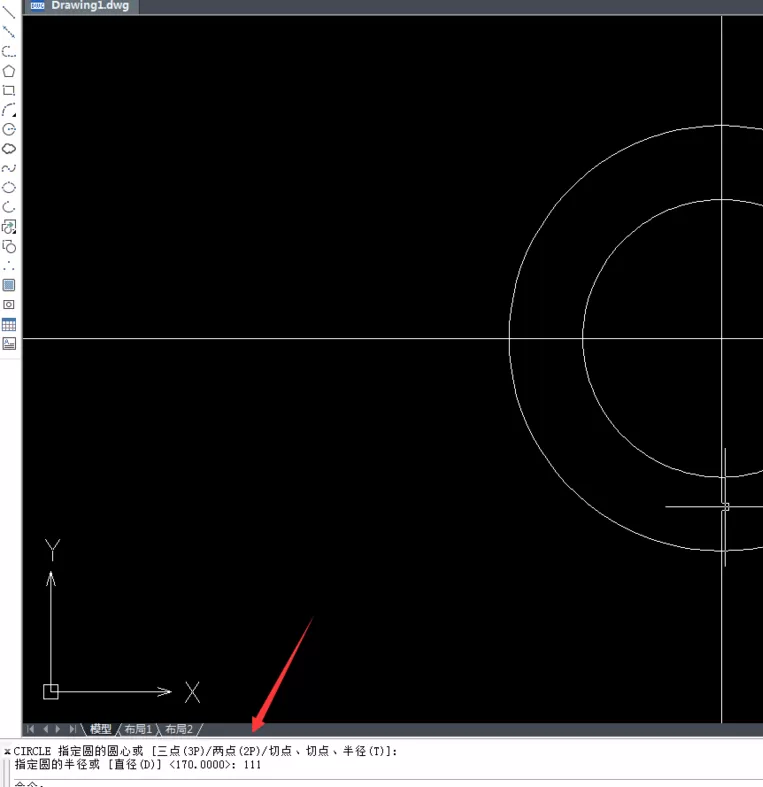

  3、我们先绘制的是法兰的外径值，然后再重复画圆的步骤，画法兰的内径值，也是输入半径值，DN200法兰的内径是222 我们就输入111是法兰的内径值，以外径圆圆心为圆心画圆，

  4、然后还需要我们按照法兰的中心距再画一个圆用来做法兰孔的圆心，画好之后我们在这个中心距的圆与中心线交点为圆心画螺栓孔，螺栓孔是22，我们就话11就可以了，这个圆就是法兰边上的用来拧螺丝用的孔

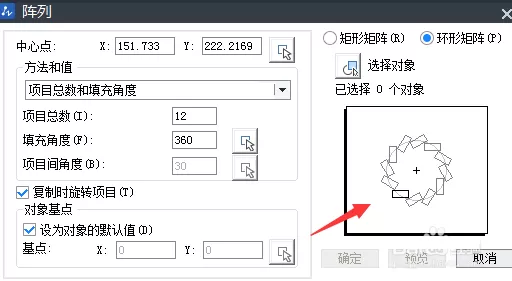

  5、画好这个孔之后我们就不需要再依次的画其他的圆了，在这里告诉大家像这种在一条轨道上的图片我们可以用阵列来完成，首先选择阵列，在阵列中选择环形阵列，因为我们要在圆形的轨道上画图

  6、然后选择中心点，它会返回到画布上，在这里我们选择圆心就可以了，然后我们再输入我们要阵列出来的数量 就是说我们一共要画几个圆，包括这个初始圆在内，就是法兰一共几个螺栓孔，就输入几就可以，

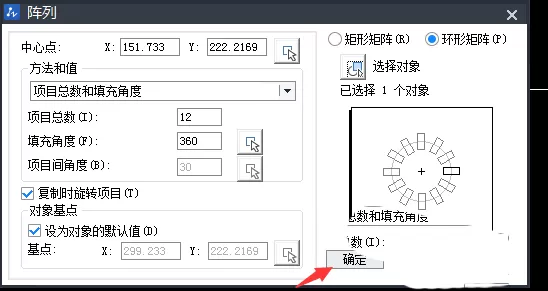

  7、选择对象，就是选择我们要阵列的这个圆，这个步骤可以和第六步颠倒操作也可以，选择对象之后圆会成虚线状这是点击回车，点击确定，就可以看到在这个图上出现我们要绘制的其他圆了，这就完成了法兰平面图的制作，

  以上就是如何使用AutoCAD画法兰图纸的全部内容了，大家都学会了吗?
