教大家利用CAD绘制出地面铺设图纸

编辑： 白满川
巴兔手游盒子
GM盒子(高返利版)
GM手游福利平台,免费送首充,上线送VIP,免费领元宝和代金券。
立即下载   精品合集

  今天小编教大家利用CAD绘制出地面铺设图纸 ，小伙伴快来下文学习利用CAD绘制出地面铺设图纸的教程吧!

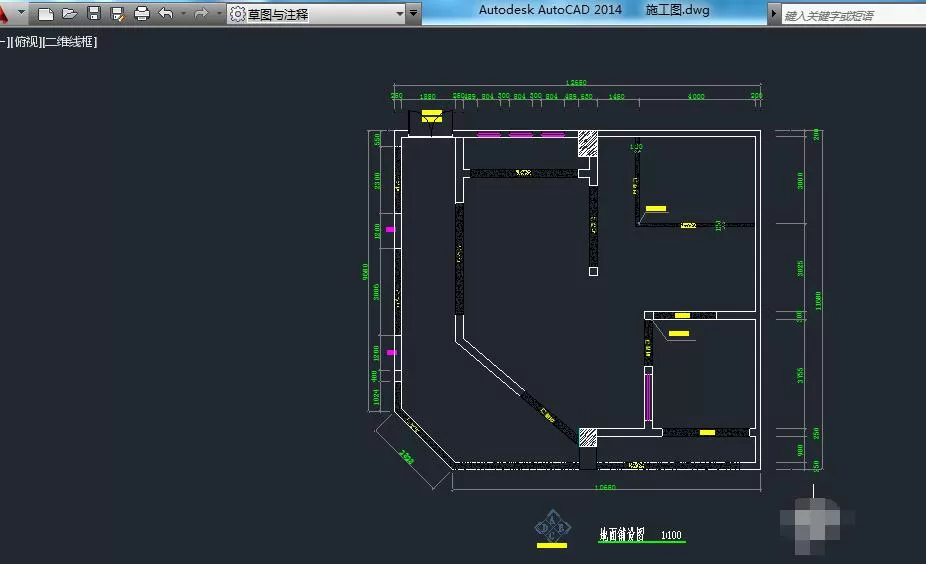

  1、双击打开文件，进入操作页面

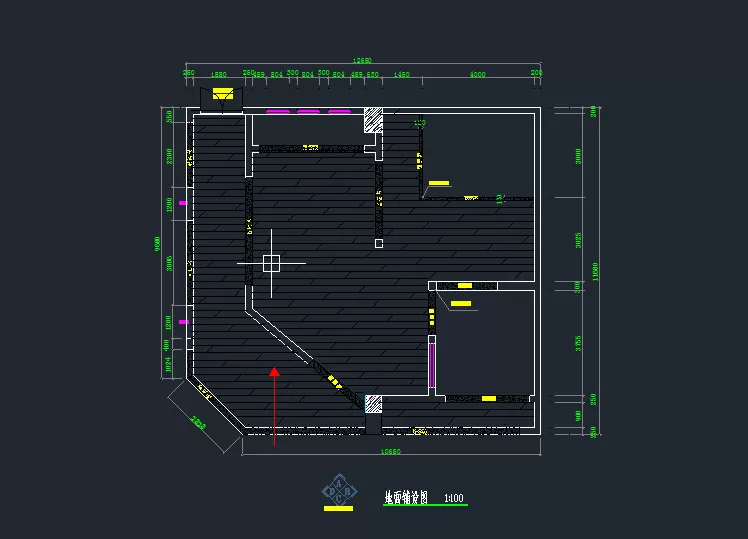

  2、用木地板填充图案，填充木地板得位置

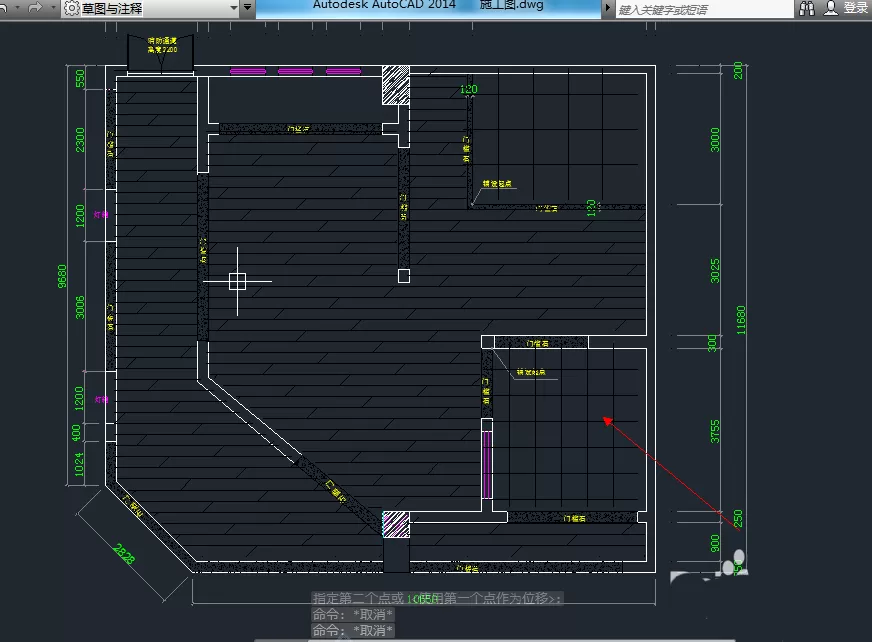

  3、用用户自定义调整800*800双向的调整表示地砖

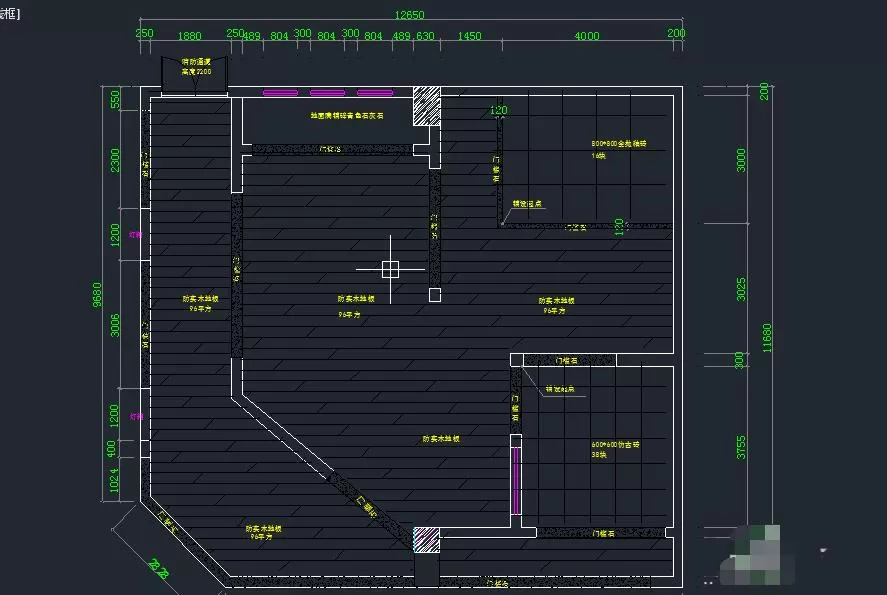

  4、然后增加文字说明

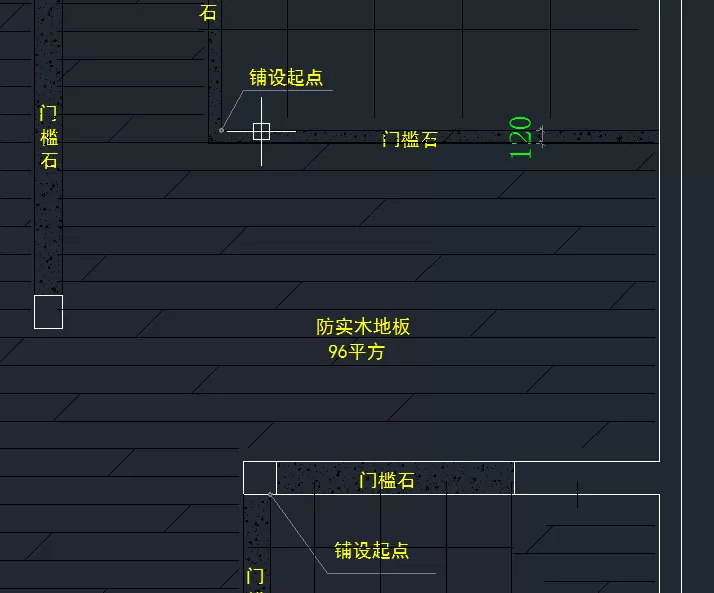

  5、标注铺设起点，对其图案

  6、检查文字和填充比例就可以了。


  上文就是小编讲解的教利用CAD绘制出地面铺设图纸的教程 ，你们都学会了吗?
